UVM Tutorial for Candy Lovers – 19. Analysis FIFO

Last Updated: February 14, 2015

This post will explain how to use analysis FIFOs. Let’s assume I wanted a scoreboard that compares two streams of jelly beans; one stream is for “expected” jelly beans, the other is for “actual” jelly beans. Also assume the jelly beans are fed to the scoreboard asynchronously. To synchronize the jelly beans, I used two analysis FIFOs:

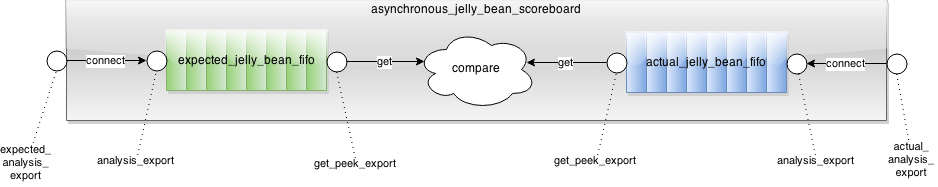

Asynchronous Jelly Bean Scoreboard
Asynchronous Jelly Bean Scoreboard

This is a sample code to implement the above scoreboard. The code should be self-explanatory. One note is that the get is a blocking task to get the next item from the FIFO (lines 43 and 44). Somehow this task is not documented in the UVM Class Reference, though.

February 14, 2015: Changed to explicitly use the get_peek_export instead of using undocumented get task.

When both the expected jelly bean and the actual jelly bean become available, the scoreboard compares them (line 45). Before finishing a simulation (extract_phase), the scoreboard checks whether there are leftover jelly beans in either FIFO. Isn’t it easy?

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
class asynchronous_jelly_bean_scoreboard extends uvm_component;
   `uvm_component_utils( asynchronous_jelly_bean_scoreboard )

   uvm_analysis_export  #( jelly_bean_transaction ) expected_analysis_export;
   uvm_analysis_export  #( jelly_bean_transaction )   actual_analysis_export;
   uvm_tlm_analysis_fifo#( jelly_bean_transaction ) expected_jelly_bean_fifo;
   uvm_tlm_analysis_fifo#( jelly_bean_transaction )   actual_jelly_bean_fifo;

   // Function: new
   //-------------------------------------------------------------------------
   function new( string name, uvm_component parent );
      super.new( name, parent );
   endfunction: new

   // Function: build_phase
   //-------------------------------------------------------------------------
   virtual function void build_phase( uvm_phase phase );
      super.build_phase( phase );

      expected_analysis_export = new( "expected_analysis_export", this );
        actual_analysis_export = new(   "actual_analysis_export", this );
      expected_jelly_bean_fifo = new( "expected_jelly_bean_fifo", this );
        actual_jelly_bean_fifo = new(   "actual_jelly_bean_fifo", this );
   endfunction: build_phase

   // Function: connect_phase
   //-------------------------------------------------------------------------
   virtual function void connect_phase( uvm_phase phase );
      super.connect_phase( phase );

      expected_analysis_export.connect( expected_jelly_bean_fifo.analysis_export );
        actual_analysis_export.connect(   actual_jelly_bean_fifo.analysis_export );
   endfunction: connect_phase

   // Task: main_phase
   //-------------------------------------------------------------------------
   virtual task main_phase( uvm_phase phase );
      jelly_bean_transaction expected_jelly_bean;
      jelly_bean_transaction   actual_jelly_bean;

      super.main_phase( phase );
      forever begin
         expected_jelly_bean_fifo.get_peek_export.get( expected_jelly_bean );           actual_jelly_bean_fifo.get_peek_export.get(   actual_jelly_bean );         if ( expected_jelly_bean.compare( actual_jelly_bean ) == 0 ) begin
            `uvm_error( "main_phase",
                        { "jelly bean mismatch: ",
                          "expected:", expected_jelly_bean.convert2string(),
                          "actual:",     actual_jelly_bean.convert2string() } )
         end
      end
   endtask: main_phase

   // Function: extract_phase - checks leftover jelly beans in the FIFOs
   //-------------------------------------------------------------------------
   virtual function void extract_phase( uvm_phase phase );
      jelly_bean_transaction jelly_bean;

      super.extract_phase( phase );
      if ( expected_jelly_bean_fifo.try_get( jelly_bean ) ) begin
         `uvm_error( "expected_jelly_bean_fifo",
                     { "found a leftover jelly bean: ", jelly_bean.convert2string() } )
      end

      if ( actual_jelly_bean_fifo.try_get( jelly_bean ) ) begin
         `uvm_error( "actual_jelly_bean_fifo",
                     { "found a leftover jelly bean: ", jelly_bean.convert2string() } )
      end
   endfunction: extract_phase
endclass: asynchronous_jelly_bean_scoreboard

EDA Playground

You can view and compile the code on EDA Playground.
